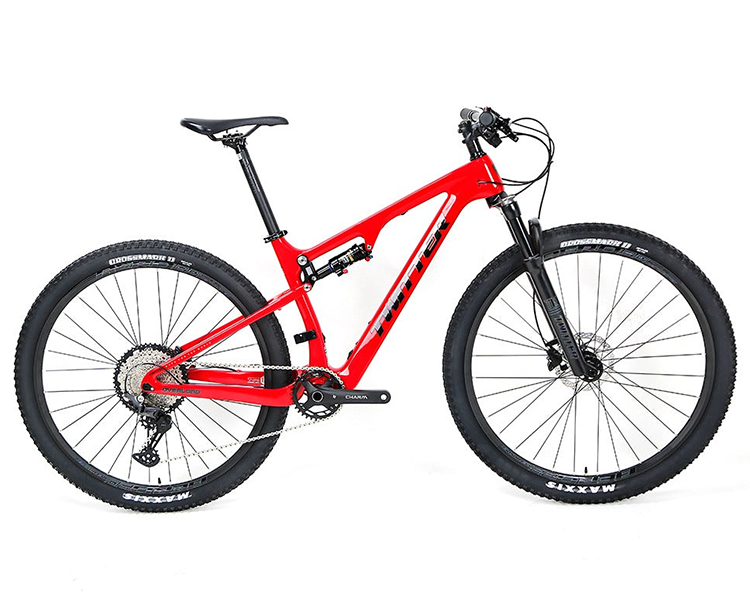

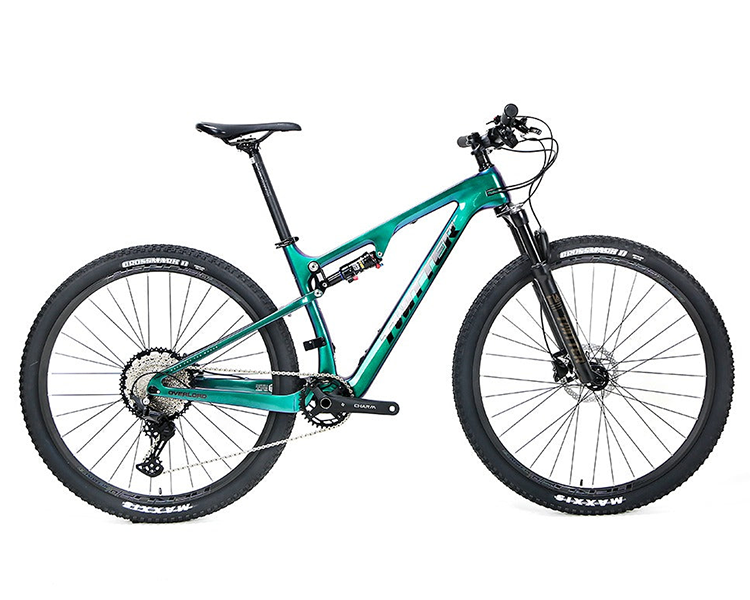

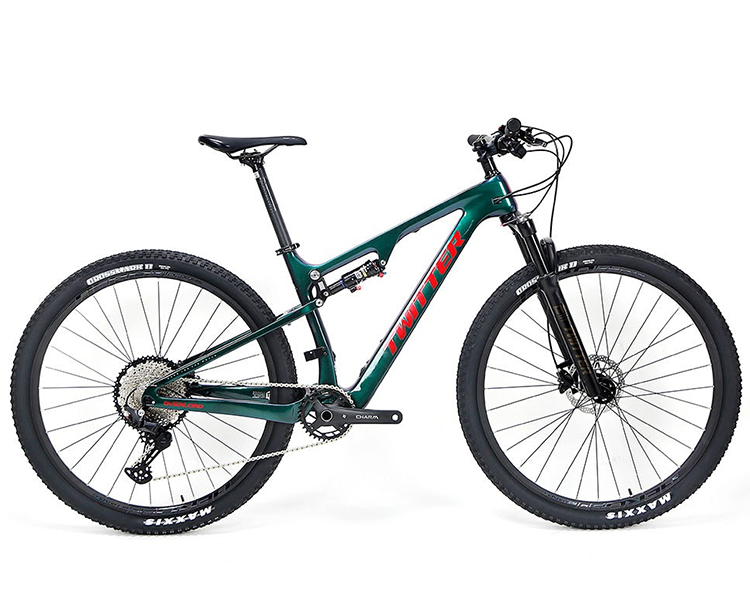

OVERLORD - Carbon Fiber Mountain Bike
OVERLORD (AM Trail) is a high-modulus carbon full-suspension MTB built for confident all-mountain control. The OVERLORD frame features internal routing, Boost thru-axles, and 110 mm rear travel paired to a 120 mm air fork. Choose from four drivetrain systems — SHIMANO DEORE M6100-12S, WheelTop OX-13S (Wireless), SRAM SX EAGLE-12S (HIGH), or SRAM AXS 12-Speed (Wireless, HIGH).
Technical Specifications
Key Components
- Wheel Size: 29 (27.5)
- Frame Height: 15" / 17" / 19" / 21"
- Bike Color: DarkGray / Silver / Ti / Red / Orange / Others; full Holographic color
- Net Weight: 13.5 kg (M6100-12S) / 13.7 kg (WheelTop OX-13S) / 13.3 kg (SRAM SX-12S HIGH) / 13.5 kg (SRAM AXS-12S HIGH)
Frame & Structure
- Frame: OVERLORD, AM, high-modulus carbon fiber, internal cables, thru-axle 12×148 Boost, 110 mm travel, DNM rear shox 165×35 mm
- Fork: TW, Mg-Al alloy, air suspension, Remote, 120, thru-axle 15×110 mm; HIGH builds: ROCKSHOX JUDY S, air, Remote, 120, thru-axle 15×110 mm
- Seat Post: RS, Alu alloy, Matte, 31.6×350 mm; HIGH builds: RS, Height-adjustable with Remote, 31.6×125 mm travel
- Head Sets: Alu alloy CNC with sealed bearings 42×52 mm
- Washer: Carbon fiber, 3×28.6×10 mm
Handlebar & Cockpit
- Handlebar Set: RS, Alu alloy, Matte Black — Handlebar 31.8×720 mm, Stem 45, Clamps 34.9 mm
Drivetrain Options
SHIMANO DEORE M6100-12S:
- Shift Levers: SHIMANO DEORE / M6100-12S
- Front Derailleur: None (1×)
- Rear Derailleur: SHIMANO DEORE / M6100-12S
- Crankset: SENICX-FM3, Alu alloy, Hollow 36T
- Cassette: SUNSHINE-12S, 11–50T
- Chain: SUMC-12S
- Bottom Bracket: Threaded, T47×24 mm
WheelTop OX-13S (Wireless):
- Shift Levers: WheelTop EDS OX-13S (Wireless)
- Front Derailleur: None (1×)
- Rear Derailleur: WheelTop EDS OX-13S (Wireless)
- Crankset: SENICX-FM3, Alu alloy, Hollow 36T
- Cassette: SUNSHINE-13S, 11–50T
- Chain: SUMC-13S
- Bottom Bracket: Threaded, T47×24 mm
SRAM SX EAGLE-12S (HIGH):
- Shift Levers: SRAM SX EAGLE-12S
- Front Derailleur: None (1×)
- Rear Derailleur: SRAM SX EAGLE-12S
- Crankset: SRAM SX EAGLE DUB, 34T
- Cassette: SRAM PG1210 EAGLE-12S, 11–50T
- Chain: SRAM SX EAGLE-12S
- Bottom Bracket: Threaded, T47×29 mm
SRAM AXS 12-Speed (Wireless, HIGH):
- Shift Levers: SRAM AXS POD-12S (Wireless)
- Front Derailleur: None (1×)
- Rear Derailleur: SRAM X1 EAGLE AXS-12S (Wireless)
- Crankset: SRAM APEX DUB, 38T
- Cassette: SRAM PG1210 EAGLE, 11–50T
- Chain: SRAM SX EAGLE-12S
- Bottom Bracket: Threaded, T47×29 mm
Braking System
- Brake: Hydraulic Disc 160/160 — SHIMANO MT200 (M6100 / WheelTop / SRAM SX HIGH); SRAM LEVEL (SRAM AXS HIGH)
Wheelset & Tires
- Hubs: RS, Alu alloy & Carbon fiber, 4-Bearings, Slotted, 32h, Disc, Thru-axle F15×110 / R12×148 Boost
- Rims: RS Alu alloy, Double-wall with rivets, W25×H21 mm
- Spokes: SHUNJIU, Circular 14G
- Tires: MAXXIS, 29 / 27.5 × 2.25"
Other Components
- Grips: Circular 22.2×120 mm, PU leather & Locking Ring
- Saddle: Comfortable & Lightweight for MTB
- Pedals: RS, Alu alloy with Bearings for MTB
- Cables: JAGWIRE — Internal Cables, External Cables
Upgrade: Full Holographic color frame (+$50); upgrade to RS remote seat post (+$80); ROCKSHOX-MNR rear shox 165×38 mm (+$100).
What’s Included
- Standard safety reflectors (Handlebar / Seat post / Front wheel / Rear wheel)
- PC bottle cage + Tools
- TWITTER Manual + Warranty Card
How to Pay for Upgrades: Add the bike to your cart, list desired upgrades (e.g., holographic frame, remote post, MNR rear shock) in the notes, and complete checkout. You’ll receive a separate invoice by email once confirmed.
